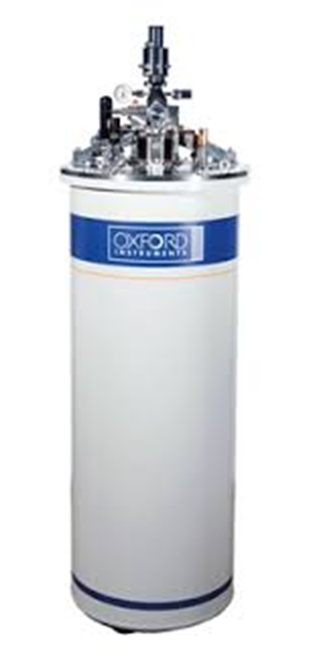

Overview：An integrated Cryofree superconducting magnet system with variable temperature inserts. The wide range of different experimental inserts enables the users to configure the measurement platform for cutting-edge applications, such as 2D materials, nano-structures and superconducting devices.

Applications: characterization of low dimensional structures, quantum dots and nanowire-based materials, quantum computing and quantum transport measurement

Features：

Standard sample probe temperature stability: ± 0.05 K

System cooldown: ~ 60 hours from room temperature to 4 K (varies with different magnet options)

Standard sample probe cooldown: < 200 minutes from room temperature to < 5 K Continuous system operation: Typically > 4 weeks

Magnetic field: 8, 9, 12 and 14 T

Magnet ramp to full field: ≤ 60 minutes (varies with different magnet options)

Varaible temperature insert sample space diameter: 50 mm nominal
